Warning This document has not been updated for a while now. It may be out of date.
Last updated: 11 Apr 2022

publishing-e2e-tests: Debugging Jenkins failures

Using the JUnit test results

The easiest way to get an overview of test output is to view the Test Result file created after the tests are complete - there are links to it on the build summary.

Test results


For each test failure there will be a corresponding screenshot of what PhantomJS was seeing at the time the test failed. This can be a useful resource when Poltergeist complains about being unable to see or click on a link.

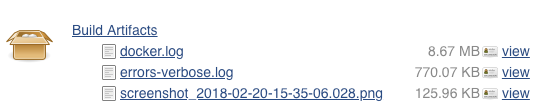

Jenkins build artifacts

Using the pipeline steps view

If there aren’t test results available, then the error will likely have occurred during the setup before the apps have run. The “Pipeline Steps” give a more detailed breakdown of which steps failed.

Jenkins pipeline steps link

From there, click on the console button to the left of any red error step to view related console output at that time which will explain the error.

Jenkins pipeline steps

Using the errors log

When an error occurs in one of the Ruby microservices, but detailed information isn’t displayed in the console output you can dig into one of the two error logs.

The abridged version of the log file which displays brief exception details is dumped into the full console output as part of the build script. The full console output can be accessed from “Console output” > “Full Log”. Scroll through the output until you see the distinctive Ruby symbolized output.

13:48:18 ---
13:48:18 :timestamp: 2018-02-20 13:47:24.348153233 +00:00
13:48:18 :errors:
13:48:18 - :type: GovukIndex::InvalidFormatError
13:48:18   :message: GovukIndex::InvalidFormatError
13:48:18 :context:
13:48:18   :environment: search-api-worker
13:48:18   :hostname:
13:48:18   :url:
13:48:18 ---

Example error style to look out for in the console output.

In the rare occasions that the abridged error doesn’t have enough information on the issue, there is also the errors-verbose.log, provided as a build artifact. This file lists the same errors, but with full stack trace information.

Failures that don’t raise Ruby errors

Builds can fail from flakiness caused by the timing of inter-container communication. In scenarios where you can’t see an error in the full console output or errors log the docker.log build artefact MAY provide a useful source of information. The docker.log file contains all the stdout + stderr from all the docker containers. Ranging between 3 and 10MB, it is important you have a clear idea of what you are looking for before jumping into it. If you believe there is a problem with a specific service you can grep for that service name:

grep “publishing-api_1” docker.log

Another technique is to track the publishing events between applications for a test by using its slug. E.g. when finding events related to the “Publishing with Specialist Publisher” test, it publishes the sluglified title "Publishing Specialist Publisher #{SecureRandom.uuid}"“publishing-specialist-publisher-uuid”.

grep -C 5 “publishing-specialist-publisher” docker.log
